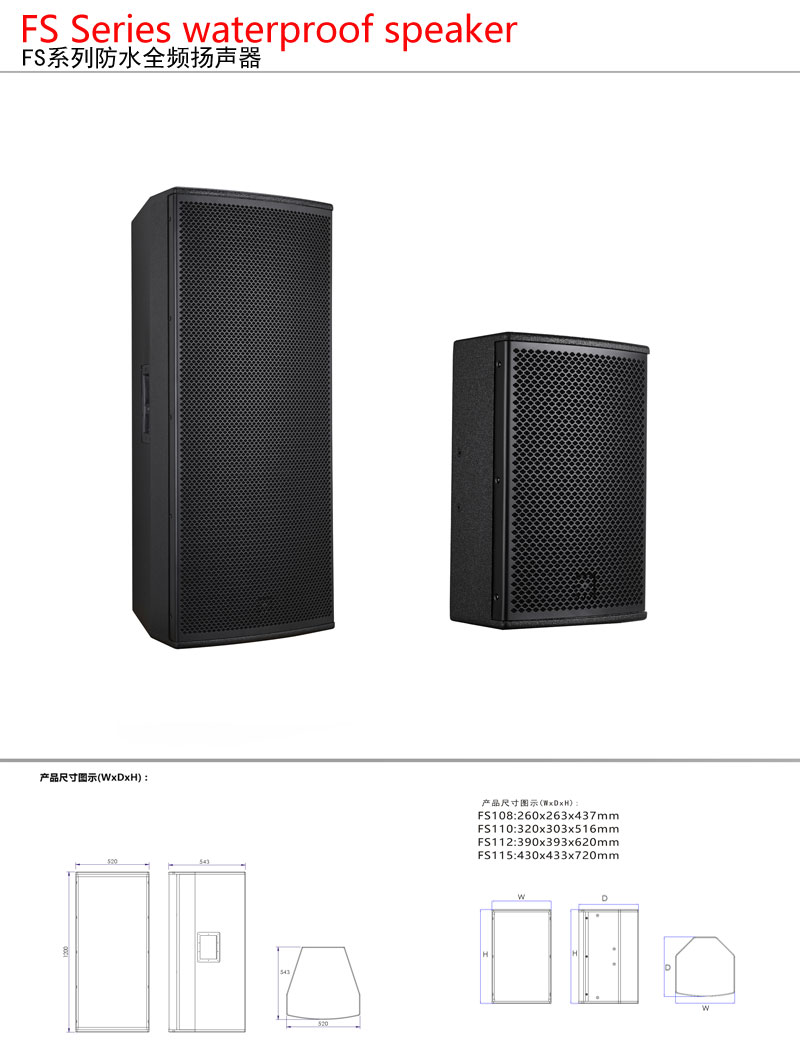

The FS waterproof series multifunctional speaker is designed for various places with high durability and portability requirements. The box is made of waterproof grade birch laminated board, with a super thick polyurea coating sprayed on the surface and a climate resistant waterproof mesh. It has good wear resistance and waterproof performance, as well as excellent sound quality performance.
Mainly suitable for outdoor mobile performances, it can meet the professional sound reinforcement needs of unexpected rainy weather and humid environments with high moisture density. Small in size, compact in structure, lightweight, and easy to plug and install, especially suitable for outdoor mobile performances.
FS Waterproof Series Speaker Technical Parameters
FS108 single 8-inch full frequency
Unit component: LF: 8 "× 1/HF: φ 34mm × 1
Frequency response (± 3dB): 70Hz --18kHz
Sensitivity (1m/1W): 95dB
Maximum sound pressure level (1M): 115db
Power (continuous/peak): 150W/300W
Directionality (H × V): 80 °× 50 °
Nominal impedance: 8 Ω
Input method: NL4 × 2,+1-1
Speaker size (width x depth x height): 260 x 263 x 437mm
Weight: 12KG
FS110 single 10 inch full frequency
Unit component: LF: 10 "× 1/HF: φ 44mm × 1
Frequency response (± 3dB): 65Hz-18kHz
Sensitivity (1m/1W): 96dB
Maximum sound pressure level (1M): 116db
Power (continuous/peak): 250W/500W
Directionality (H × V): 80 °× 50 °
Nominal impedance: 8 Ω
Input method: NL4 × 2,+1-1
Speaker size (width x depth x height): 320 x 303 x 516mm
Weight: 16KG
FS112 single 12 inch full frequency
Unit component: LF: 12 "× 1/HF: φ 44mm × 1
Frequency response (± 3dB): 60Hz --18kHz
Sensitivity (1m/1W): 97dB
Maximum sound pressure level (1M): 117db
Power (continuous/peak): 350W/700W
Directionality (H × V): 90 °× 60 °
Nominal impedance: 8 Ω
Input method: NL4 × 2,+1-1
Speaker size (width x depth x height): 390 x 393 x 620mm
Weight: 26KG
FS115 single 15 inch full frequency
Unit component: LF: 15 "× 1/HF: φ 44mm × 1
Frequency response (± 3dB): 55Hz-18kHz
Sensitivity (1m/1W): 98dB
Maximum sound pressure level (1M): 118db
Power (continuous/peak): 400W/800W
Directionality (H × V): 90 °× 60 °
Nominal impedance: 8 Ω
Input method: NL4 × 2,+1-1
Speaker size (width x depth x height): 430 x 433 x 720mm
Weight: 31KG
FS215 dual 15 inch full frequency
Unit component: LF: 15 "× 2/HF: φ 44mm × 1
Frequency response (± 3dB): 45Hz-18kHz
Sensitivity (1m/1W): 101dB
Maximum sound pressure level (1M): 121db
Power (continuous/peak): 800W/1600W
Directionality (H × V): 90 °× 60 °
Nominal impedance: 4 Ω
Input method: NL4 × 2,+1-1
Speaker size (width x depth x height): 520 x 543 x 1200mm
Weight: 59KG
