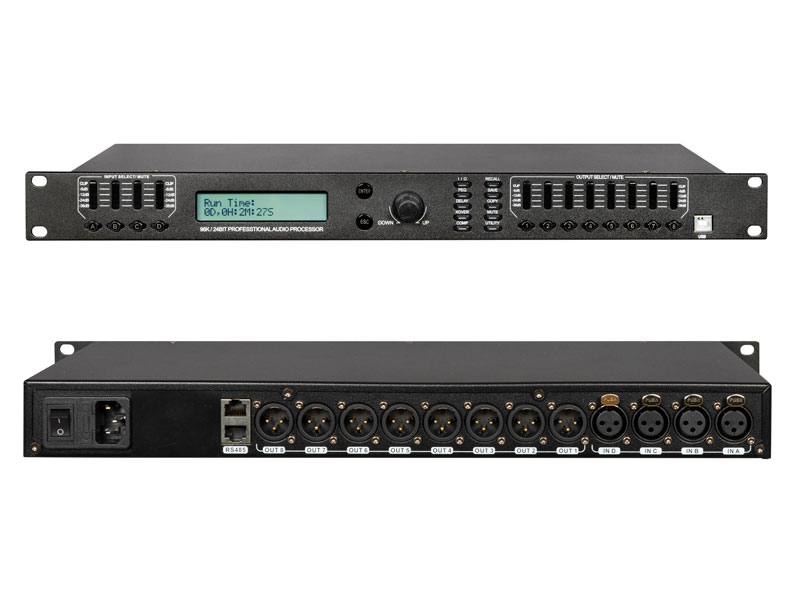

Product Description:
Using 96KHZ/24bit audio sampling, with a signal-to-noise ratio of up to 108dB (without weighting), positioned as a professional audio processor, it includes 4 input channels and 8 output channels, each with 12 segments of parametric equalization. All input channels support a dynamic expander/noise gate, and each output channel has a compressor/limiter with a soft inflection point (KNEE).
Product Features:
1. Based on XMOS advanced 16 core processor, 96K/24bit audio sampling;
2. Ultra low round trip latency, less than 0.8ms;
3. AKM Premium ADC AK5554 and DAC AK4458 are used for 96K/24 bit audio sampling,
The measured audio SNR is 108.6dB without weighting (A weighting: 112dB), THD+N:<-103dB;
4. Maximum input level of 14dBu, maximum output level of 14dBu;
On the chassis panel, each channel supports 5-level level level indication in dBu units;
6. The analog audio channel adopts true fully differential transmission with strong common mode rejection capability;
7. Multi level permission management, super users can manage the permissions of other users;
Technical parameters:
◆ Audio indicators
Input port characteristics
Interface: XLR card farmer interface, balanced input; Maximum undistorted input level:+8dBu/2Vrms input 20K crosstalk:<-100dBu
◆ Output port characteristics
Interface: XLR card farmer interface, balanced output; Maximum output level:+8dBu/2Vrms
Output impedance: Relay version: 33 ohms Transistor version: 150 ohms Crosstalk:<-100dBu
◆ Analog input to analog output
Total harmonic distortion+noise:<-103dBu
Signal to noise ratio: A weighted 112dBA, unweighted 108.5dBA
Frequency response (20Hz-20KHz):+-0.5Hz
Input/output gain (all software parameters restored to factory settings):+-0.5dB8
◆ Power management
Input range: AC90V-240V, 50/60HZ power supply Rated input power:<20W
◆ Size: Length 218mm * Width 483mm * Height 44mm
Net weight: 2.45KG
